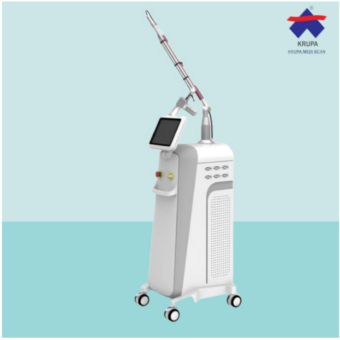

A fractional CO2 laser (FCL) is a non-invasive device that uses infrared light to remove the top layers of damaged skin. The laser fractionates its energy beam into many microbeams to create microscopic thermal wounds in the skin. This process is called fractional photothermolysis, which causes homogeneous thermal damage at a specific depth within the skin. The surrounding skin remains intact to help with healing.
| Laser Appartures | Metal Tube RF |
| Wavelength | 10600nm |
| Display | 8.4" inch Color Touch Screen |
| Power | 40 W |
| Beam Delivery | 7 joint Articulated Arm |
| Spot size | 0.2mm at the focus |
| Operating Mode | Normal Ultrapulse / Fractional / Vaginal / 1540 |
| Scan Pattern |
1) Square 2) Rectangle 3) Round 4) Triangle 5) Oval 6) Diamond Shape 7) Line 8) Scatch Mode |
| Scan pattern size | MIN 0.1 X 0.1mm to MAX 30x30mm |
| Pulse Repeat time | 1ms ~ 5000ms |
| Overlap | 1-10 times |
| Scan Mode |
1) Normal 2) Midsplit 3) Random |
| Pulse duration | 0.1 - 10ms adjustable |
| Distance b/w two dots | 0.1mm ~ 2.6mm |
| Cooling system | Air Cooling |
| Dimension of machine | 55 x 82 x 125 cm ( L X W X H) |
| Weight | 58kg |
| Input Power Supply | AC 220V/50Hz |
Wart, Viral Warts, Herpes Zoster, Nevus, Mole, Skin tags, Age spot
Cutaneous Malignant tumour , Actinic Keratoses
Eliminating Acne scar and the scar by trasumatism or operation
Remove Smooth wrinkle around the eyes and mouth
Smooth wrinkles around the eyes & mouth
Rejuvenate your neck, chest, back and hand etc.
Laser Skin Resurfacing and rejuvenation
Remove Intractable chloasma and pigment
Improve skin texture tone and pore size.
Remove underarm odour
MInimum space requirement
Big 10.4" color LCD touch screen
Humanized software control,Stable laser output
Individual scan pattern for different applications
Beam transport device with 7 articular arm
- Air cooling system
- According to application select mode (i)Normal Mode (ii)Fractional Mode
- Enlarge & reduce scaring graphics
- 5 group of parameter setting
- 3 types of scan methods (i)Free scan (ii)Sequence scan (iii)Max distance scan
- Exchange 3 kind of methods
- 10600nm wavelength protective laser glasses provided for the operator.
| Brand | KRUPA |
| OEM & ODM | Yes |
| Clinic Training | Offer |
| After Sales Service | Offer |
| Place of Origin | Ahmedabad |
| Transportation | By Road,By Sea,By Air |
| Delivery Detail | 10-15 days |
| Payment Method | TT,Paypal,Card |
